Product Overview

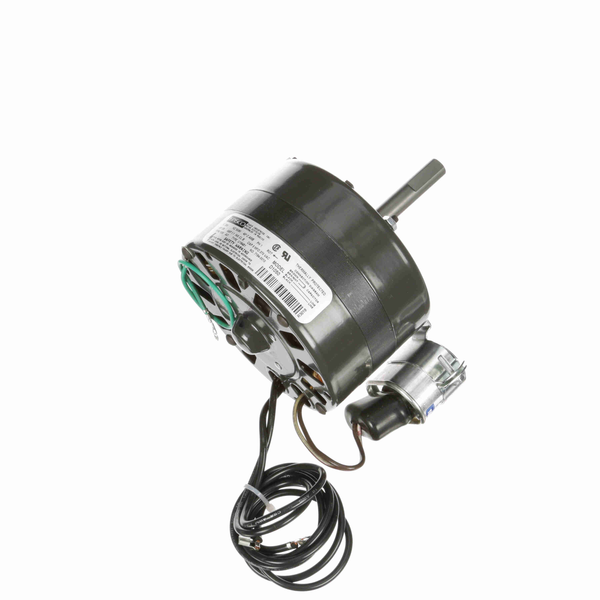

Fasco D1050 OEM Replacement Motor 1/8 HP 1 Ph 60 Hz 230 V 1550 RPM 1 Speed 42 Frame OAO
KEY FEATURES
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Enclosed Shaft End End-Frame and Shell, Open Lead End End-Frame, Air Over
- Class B Insulation, 40°C Ambient
- 4 Point - 4.62" Bolt Circle, Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 31" Leads with Terminal
Nameplate Specifications
| Phase: | 1 | Output HP: | 1/8 Hp |
| Output KW: | 0.10 kW | Voltage: | 230 V |
| Speed: | 1550 rpm | Service Factor: | 1 |
| Frame: | 42 | Enclosure: | Open Air Over |
| Thermal Protection: | Automatic | Ambient Temperature: | 40 °C |
| Frequency: | 60 Hz | Current: | 1.1 A |
| Duty: | Continuous | Insulation Class: | B |
| UL: | Recognized | CSA: | Y |
| CE: | N | A2L Status: | A2L Compliant |
| Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Clockwise Shaft End |
| Mounting: | Round Belly Band | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Na |
| Shaft Type: | Flat | Overall Length: | 6.68 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 2.95 in |
General Specifications
| UPC: | 815585027768 | Weight: | 7.40 LB |
| Packaged Length: | 6.63 IN | Packaged Width: | 5.13 IN |
| Packaged Height: | 10.00 IN | Country of Origin: | Mexico |
