Product Overview

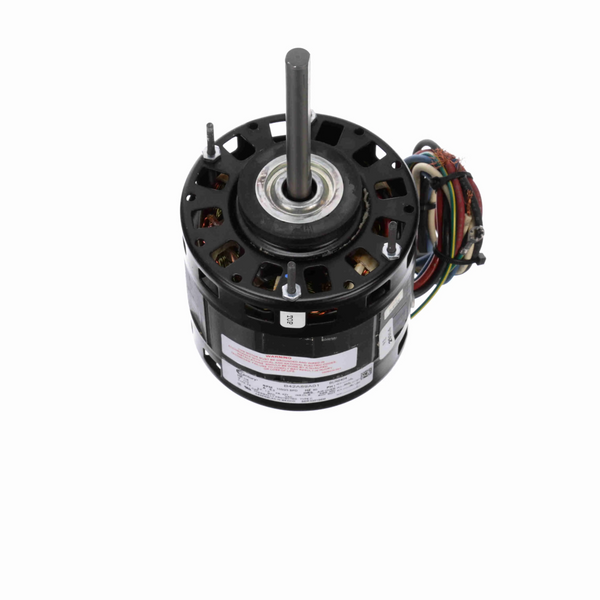

Century 9701 Fan and Blower Motor 1/6 HP 1 Ph 60 Hz 115 V 1050 RPM 3 Speed 42 Frame
KEY FEATURES
- Furnace Blower - Attic Ventilator - Air Handler - Fan Coil Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 26" Leads
- Extended Studs Shaft End, Resilient Ring Mounting
- Downloads:
- U9701 Data Pack
General Specifications
| UPC: | 786674009654 | Weight: | 12.00 LB |
| Packaged Length: | 10.87 IN | Packaged Width: | 5.81 IN |
| Packaged Height: | 5.81 IN | HTC: | 8501.40.4040 |
| Country of Origin: | Mexico |
Nameplate Specifications
| Output HP: | 1/6 Hp | Output KW: | 0.13 kW |
| Frequency: | 60 Hz | Voltage: | 115 V |
| Current: | 6.3 A | Speed: | 1050 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | B |
| Frame: | 42Y | Enclosure: | Open Enclosed |
| Thermal Protection: | Automatic | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 3 |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 6 | Rotation: | Counterclockwise Lead End |
| Mounting: | Resilient Rings | Motor Orientation: | Horizontal |
| Drive End Bearing: | Sleeve | Opp Drive End Bearing: | Sleeve |
| Frame Material: | N/A | Shaft Type: | Flat |
| Overall Length: | 8.59 in | Shaft Diameter: | 0.500 in |
| Shaft Extension: | 4.5 in |
