Product Overview

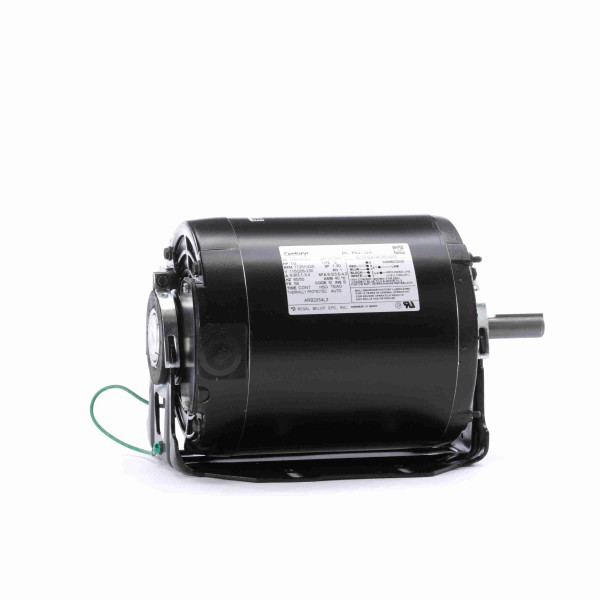

Century ARB2054L3 Fan and Blower Motor 1/2 HP 1 Ph 60 Hz 115/208-230 V 1800 RPM 56 Frame
KEY FEATURES
- UL recognized component listing and CSA certification ensures the product is safe for use.
- Double-shielded bearings extend the service life of the motor.
- Automatic reset thermal protector (as noted) protects against overload.
- Moderate starting torque helps reduce fan stresses.
Nameplate Specifications
| Phase: | 1 | Output HP: | 1/2 Hp |
| Output KW: | 0.37 kW | Voltage: | 115/208-230 V |
| Speed: | 1725/1425 rpm | Service Factor: | 1.3 |
| Frame: | 56 | Enclosure: | Totally Enclosed Air Over |
| Thermal Protection: | Automatic | Ambient Temperature: | 40 °C |
| Frequency: | 60 Hz | Current: | 6.8/3.1-3.4 A |
| Duty: | Continuous | Insulation Class: | B |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Split Phase | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Reversible |
| Mounting: | Resilient Base | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | Keyed | Overall Length: | 10.84 in |
| Frame Length: | 5.69 in | Shaft Diameter: | 0.625 in |
| Shaft Extension: | 2 in |
General Specifications
| UPC: | 786674011749 | Weight: | 24.00 LB |
| Packaged Length: | 14 IN | Packaged Width: | 8 IN |
| Packaged Height: | 8.5 IN | HTC: | 8501.40.4040 |
| Country of Origin: | Mexico |
