Product Overview

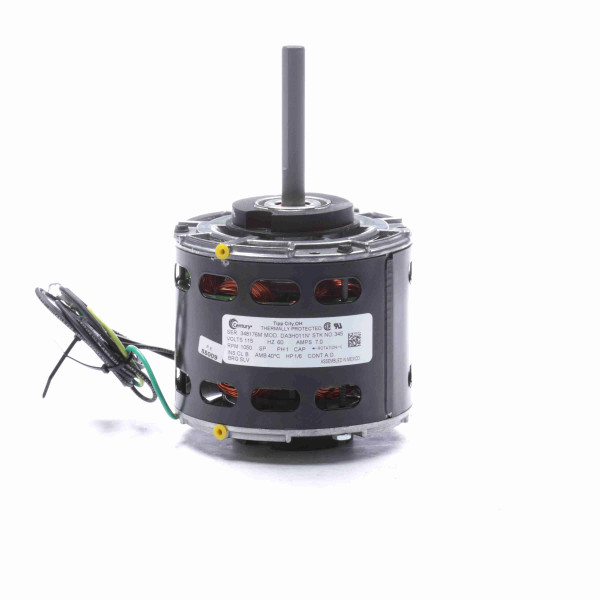

Century 345 1/6 HP Fan & Blower Motor 1050 RPM 115 V 42 Frame Replaces Fasco D156
- Furnace Blower - Attic Ventilator - Air Handler - Fan Coil Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 30" Leads
- Resilient Ring Mounting
General Specifications
| UPC: | 786674006585 | Weight: | 10.00 LB |
| Packaged Length: | 11 IN | Packaged Width: | 7.5 IN |
| Packaged Height: | 7 IN |
Nameplate Specifications
| Output HP: | 1/6 Hp | Output KW: | 0.13 kW |
| Frequency: | 60 Hz | Voltage: | 115 V |
| Current: | 7.0 A | Speed: | 1050 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Continuous Air Over | Insulation Class: | B |
| Frame: | 42 | Enclosure: | Open Air Over |
| Thermal Protection: | Automatic | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 6 | Rotation: | Clockwise Shaft End |
| Mounting: | Resilient Rings | Motor Orientation: | Horizontal |
| Drive End Bearing: | Sleeve | Opp Drive End Bearing: | Sleeve |
| Frame Material: | Rolled Steel | Shaft Type: | Flat |
| Overall Length: | 7.71 in | Frame Length: | 3.42 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 3.71 in |
