Product Overview

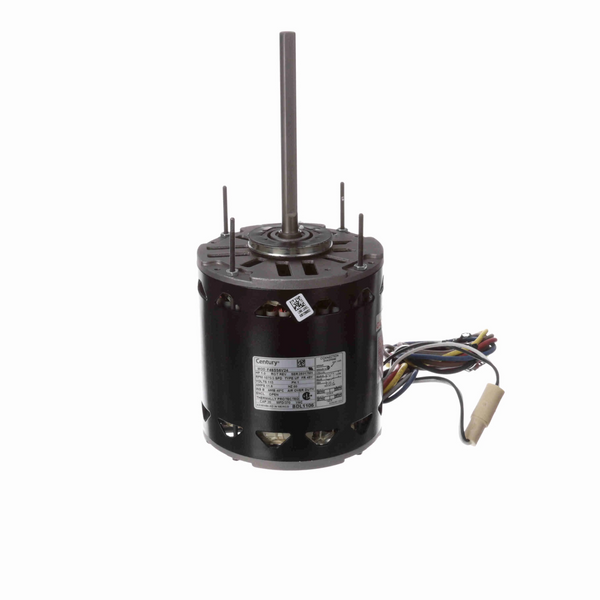

Century BDL1106 Fan and Blower Motor 1 HP 1 Ph 60 Hz 115 V 1075 RPM 3 Speed 48 Frame
KEY FEATURES
- Direct Drive Fan & Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 20 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 27" Leads
- Extended Studs Shaft End, Resilient Ring Mounting
- Downloads:
- BDL1106 Data Pack
General Specifications
| UPC: | 786674013620 | Weight: | 21.00 LB |
| Packaged Length: | 15.55 IN | Packaged Width: | 6.57 IN |
| Packaged Height: | 6.81 IN | HTC: | 8501.40.6040 |
| Country of Origin: | India |
Nameplate Specifications
| Output HP: | 1 Hp | Output KW: | 0.75 kW |
| Frequency: | 60 Hz | Voltage: | 115 V |
| Current: | 11.6 A | Speed: | 1075 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Efficiency: | 60.6 % | Duty: | Air Over |
| Insulation Class: | B | Frame: | 48Y |
| Enclosure: | Open Enclosed | Thermal Protection: | Automatic |
| Ambient Temperature: | 40 °C | UL: | Recognized |
| CSA: | Y | CE: | N |
| Number of Speeds: | 3 |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 6 | Rotation: | Reversible |
| Mounting: | Resilient Rings | Motor Orientation: | Horizontal |
| Drive End Bearing: | Ball | Opp Drive End Bearing: | Ball |
| Frame Material: | Rolled Steel | Shaft Type: | Double Flat |
| Overall Length: | 12.74 in | Frame Length: | 5.25 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 6.4 in |
