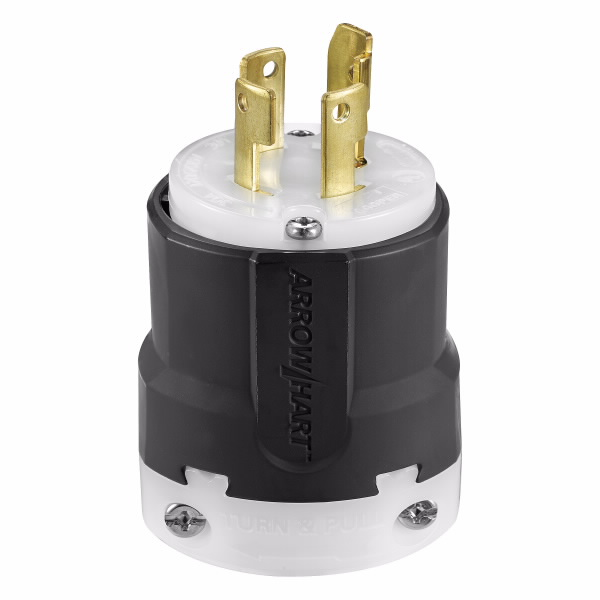

Eaton locking plug, #16-12 AWG, 30A, Industrial, 120/208V, Back wiring, Black, white, Safety grip, Non-NEMA, Four-pole, Four-wire, Glass-filled nylon, 0.63 to 1.16 in
Industrial grade locking devices are designed for quick and easy installation and provide reliable performance in tough industrial environments.
| Allowable Wire Size |
#16-8 AWG |
| Amperage Rating |
30A |
| Application |
Industrial |
| Color |
Black | White |
| Contact Material |
Brass |
| Cord Diameter |
0.38-1.16 in (9.5-29.4 mm) |
| Design Type |
Ultra grip |
| Device Grade |
Extra heavy-duty industrial specification grade |
| Face/Body Material |
Nylon |
| Material |
Nylon |
| Nema Configuration |
Non-NEMA |
| Number Of Poles |
Four-pole |
| Number Of Wires |
Non-grounding | 4 |
| Operating Temperature |
-40 to 60 °C (-40 to 140 °F) |
| Special Features |
Locking receptacle |
| Torque rating |
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch |
| Type |
Locking plug |
| Voltage Rating |
3ØY 120/208 V |
| Wiring Method |
Back |
| Length |
4.19 IN |
| Width |
2.28 IN |
| Height |
2.31 IN |
| Volume |
22.068 CI |
| Weight |
0.4 LB |
| Length |
4.19 IN |
| Width |
2.28 IN |
| Height |
2.31 IN |
| Weight |
0.4 LB |
|
|
- Refer to warranty document.
|
