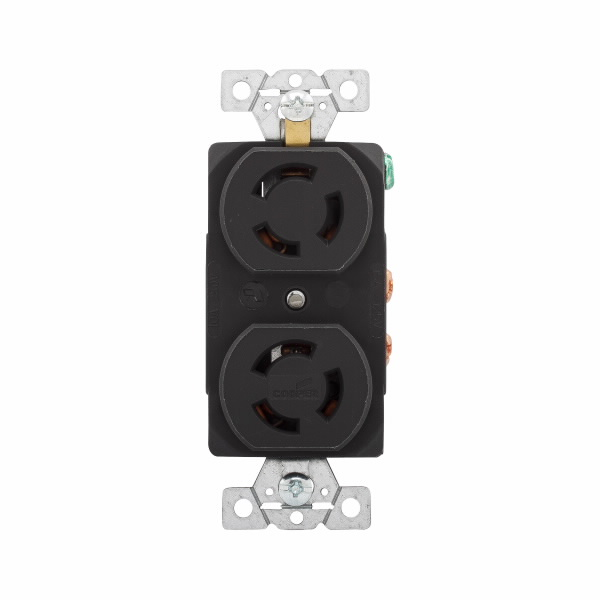

Eaton locking receptacle, #14-10 AWG, 10A, 15A, Industrial, 125/250V, Back and side wiring, Black, Brass, Duplex, Non-NEMA, Three-pole, Three-wire, Glass-filled nylon
Industrial grade locking devices are designed for quick and easy installation and provide reliable performance in tough industrial environments.
| Allowable Wire Size |
#14-10 AWG |
| Amperage Rating |
10A, 15A |
| Application |
Industrial |
| Color |
Black |
| Contact Material |
Brass |
| Design Type |
Duplex receptacle |
| Face/Body Material |
Glass filled Nylon |
| Material |
Glass filled nylon |
| Nema Configuration |
Non-NEMA |
| Number Of Poles |
Three-pole |
| Number Of Wires |
Non-grounding | 3 |
| Operating Temperature |
-40 to 70 °C (-40 to 158 °F) |
| Special Features |
Auto grip locking plug |
| Type |
Locking receptacle |
| Voltage Rating |
125/250 V |
| Wiring Method |
Back and side |
| Length |
1.81 IN |
| Width |
1.94 IN |
| Height |
4.48 IN |
| Volume |
15.731 CI |
| Weight |
0.32 LB |
| Length |
1.81 IN |
| Width |
1.94 IN |
| Height |
4.48 IN |
| Weight |
0.32 LB |
