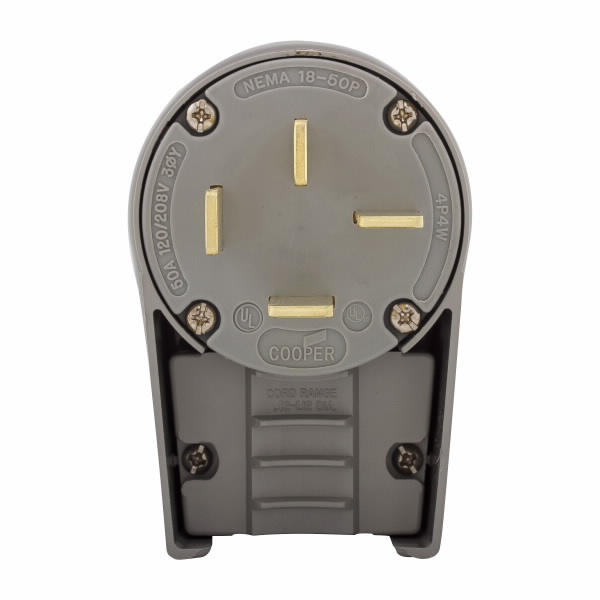

Eaton Arrow Hart extra heavy-duty angled plug , #12-4 AWG, 50A, Industrial, 120/208V, Back wire, Gray, Brass, Thermoplastic, 18-50P, Four-pole, four-wire, non grounding, Screw, Thermoplastic, Core pack
Heavy duty design and construction make Arrow Hart power devices ideal for any high amperage industrial or commercial power connectivity application.
| Allowable Wire Size |
#12-4 AWG |
| Amperage Rating |
50 A |
| Application |
Industrial |
| Color |
Gray |
| Connection Type |
Screw |
| Contact Material |
Brass |
| Design Type |
Straight blade |
| Device Grade |
Extra heavy-duty industrial specification grade |
| Device Type |
Plug |
| Face/Body Material |
Thermoplastic |
| Material |
Thermoplastic |
| Nema Configuration |
18-50P |
| Number Of Poles |
Four-pole |
| Number Of Wires |
4 |
| Packaging type |
Core pack |
| Receptacle Type |
Four-pole, four-wire, non grounding |
| Style Type |
Power, Angled body |
| Torque rating |
30-35 lbf-inch |
| Type |
Angled plug |
| Voltage Rating |
120/208 V |
| Wiring Method |
Back wire |
| Length |
1.88 IN |
| Width |
3 IN |
| Height |
4.3 IN |
| Volume |
24.252 CI |
| Weight |
1.05 LB |
| Length |
1.88 IN |
| Width |
3 IN |
| Height |
4.3 IN |
|
|
- Refer to warranty document.
|
