Product Overview

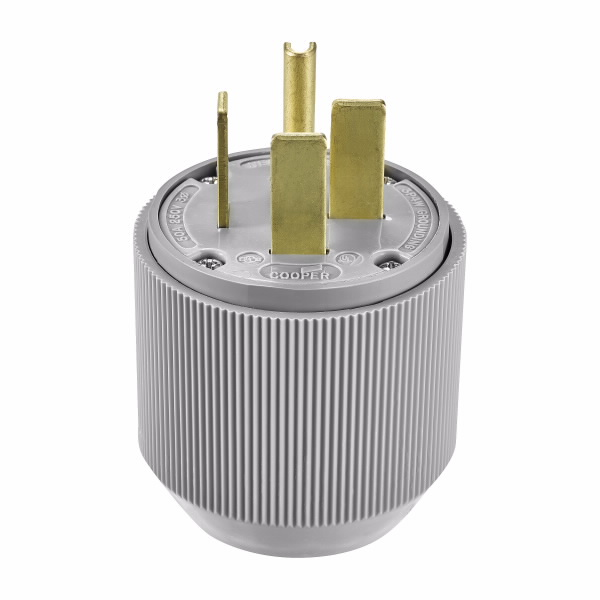

Eaton Wiring Devices 8452N Plug 50A 250V 3PH 3P4W Str GY
Eaton Arrow Hart extra heavy-duty auto grip plug , #12-4 AWG, 50A, Industrial|range and dryer, 250V, Back wire, Gray, Brass, Nylon, 15-50P, Three-pole, four-wire, grounding, Screw, Nylon, Core pack
Heavy duty design and construction make Arrow Hart power devices ideal for any high amperage industrial or commercial power connectivity application.
| Allowable Wire Size | #12-4 AWG |
| Amperage Rating | 50 A |
| Application | Industrial, range and dryer |
| Color | Gray |
| Connection Type | Screw |
| Contact Material | Brass |
| Design Type | Straight blade |
| Device Grade | Extra heavy-duty industrial specification grade |
| Device Type | Plug |
| Face/Body Material | Nylon |
| Material | Nylon |
| Nema Configuration | 15-50P |
| Number Of Poles | Three-pole |
| Number Of Wires | 4 |
| Packaging type | Core pack |
| Receptacle Type | Three-pole, four-wire, grounding |
| Style Type | Power, Straight body |
| Torque rating | 30-35 lbf-inch |
| Type | Plug |
| Voltage Rating | 250V |
| Wiring Method | Back wire |
| Length | 3.12 IN |
| Width | 3.12 IN |
| Height | 3.81 IN |
| Volume | 37.088 CI |
| Weight | 0.82 LB |
| Length | 3.12 IN |
| Width | 3.12 IN |
| Height | 3.81 IN |
| Weight | 1.05 LB |
|
