Product Overview

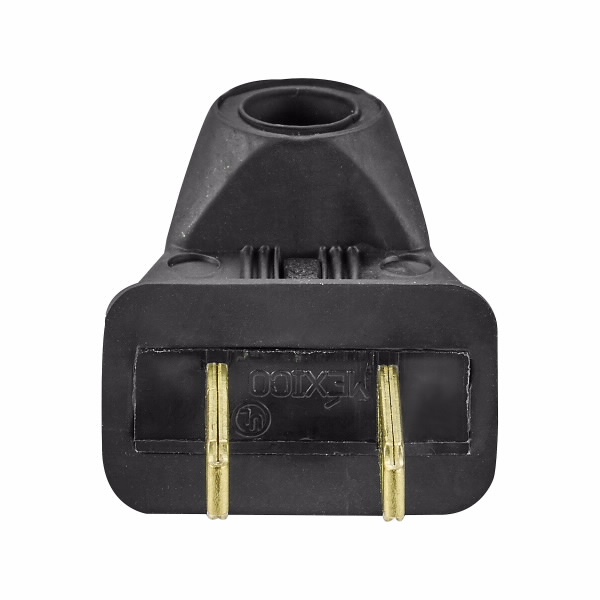

Eaton Wiring Devices 84BK-BOX Plug Angle Rubber 15A 125V 2P2W Str BK
Eaton straight blade angled plug , #18-16 AWG, 15A, Commercial|Residential, 125V, Back wire, Black, Brass, Thermoplastic rubber, 1-15P, Two-pole, two-wire, non grounding, Screw, 0.33", Thermoplastic rubber, ED Box
Our compact yet rugged light commercial and standard residential grade plugs and connectors are available in a broad range of designs, materials and configurations for virtually any replacement application or do-it-yourself extension cord creation.
| Allowable Wire Size | #18-16 AWG |
| Amperage Rating | 15 A |
| Application | Commercial/residential |
| Color | Black |
| Connection Type | Screw |
| Contact Material | Brass |
| Cord range | 0.33" in diameter |
| Design Type | Straight blade |
| Device Grade | Standard grade |
| Device Type | Plug |
| Face/Body Material | Thermoplastic rubber |
| Material | Thermoplastic rubber |
| Nema Configuration | 1-15P |
| Number Of Poles | Two-pole |
| Number Of Wires | 2 |
| Packaging type | ED Box |
| Receptacle Type | Two-pole, two-wire, non grounding |
| Style Type | Angled body |
| Torque rating | 14 lbf-inch |
| Type | Rubber plug |
| Voltage Rating | 125V |
| Wiring Method | Back wire |
| Length | 0.983 IN |
| Width | 1.175 IN |
| Height | 1.836 IN |
| Volume | 2.121 CI |
| Weight | 0.03 LB |
| Length | 0.983 IN |
| Width | 1.175 IN |
| Height | 1.836 IN |
| Weight | 1 LB |
|
