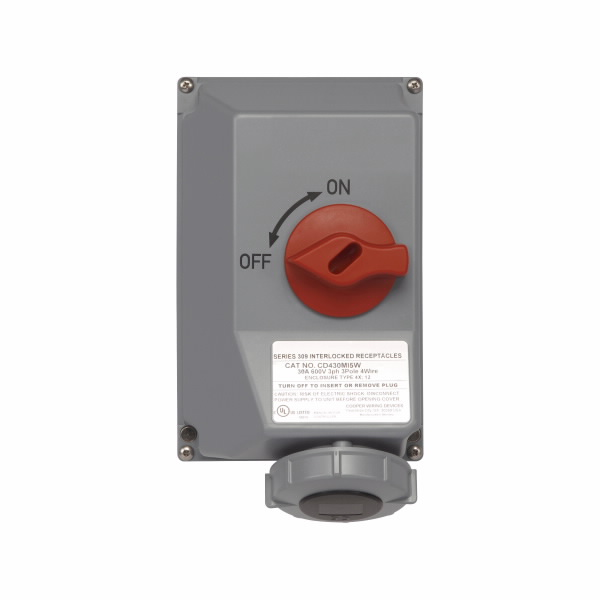

Eaton Arrow hart mechanical interlock, Non-fusible, 30A, Extra Heavy-Duty, 3Ø 600V, Back wire, Black and gray, Brass, NEMA 4X, NEMA 12, IP66, Valox, Three-pole, Four-wire, grounding, Female, 20 HP, Rugged Valox, Three-phase
Arrow Hart pin and sleeve iec 60309 devices includes connectors, receptacles, plugs, inlets, interlocks, accessories
| Amperage Rating |
30A |
| Application |
Industrial, food and beverage, wastewater treatment |
| Color |
Black | Gray |
| Contact Material |
Brass |
| Design Type |
Mechanical Interlock |
| Environmental Resistance |
NEMA 4X | IP66 | NEMA 12 |
| Face/Body Material |
Valox |
| Gender |
Female |
| Horsepower |
20 hp |
| Material |
Rugged Valox |
| Number Of Poles |
Three-pole |
| Number Of Wires |
Grounding | 4 |
| Phase |
Three-phase |
| Special Features |
Non-fusible |
| Type |
Mechanical interlock |
| Voltage Rating |
600 V |
| Length |
14.2 IN |
| Width |
7.3 IN |
| Height |
7.7 IN |
| Volume |
798.182 CI |
| Weight |
5 LB |
| Length |
14.2 IN |
| Width |
7.3 IN |
| Height |
7.7 IN |
| Weight |
5 LB |
