Product Overview

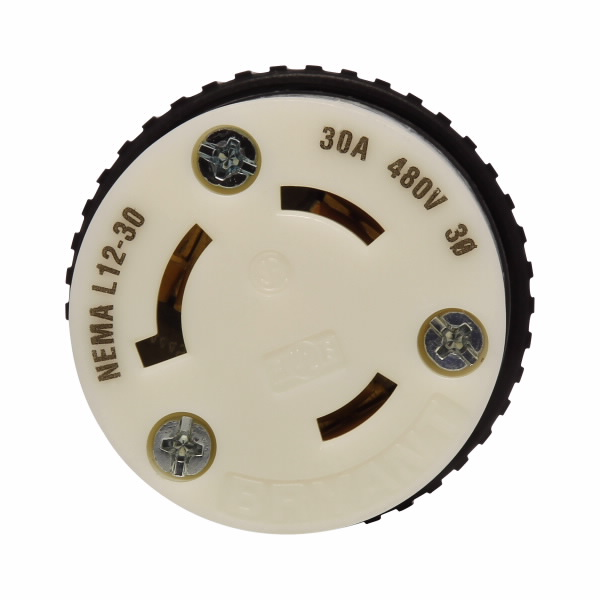

Eaton Wiring Devices CWL1230C Conn 30A 480V 3PH 3P3W H/L BW
Eaton auto grip locking connector, #18-8 AWG, 30A, Industrial, 480V, Back wiring, Black, white, Auto grip, L12-30, Three-pole, Three-wire, Nylon, 0.38 to 1 in, -40° to 60°C
Industrial grade locking devices are designed for quick and easy installation and provide reliable performance in tough industrial environments.
| Allowable Wire Size | #18-8 AWG |
| Amperage Rating | 30A |
| Application | Industrial |
| Color | Black | White |
| Contact Material | Brass |
| Cord Diameter | 0.39-0.95 in (7.6 mm-24.1 mm) |
| Design Type | Standard locking connector |
| Device Grade | Heavy-duty specification grade |
| Face/Body Material | Nylon |
| Material | Nylon |
| Nema Configuration | L12-30 |
| Number Of Poles | Three-pole |
| Number Of Wires | Non-grounding | 3 |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) |
| Special Features | Auto grip locking receptacle |
| Type | Locking connector |
| Voltage Rating | 3Ø 480 V |
| Wiring Method | Back |
| Length | 2.32 IN |
| Width | 2.34 IN |
| Height | 4.34 IN |
| Volume | 23.561 CI |
| Weight | 0.36 LB |
| Length | 2.32 IN |
| Width | 2.34 IN |
| Height | 4.34 IN |
| Weight | 0.36 LB |
|
