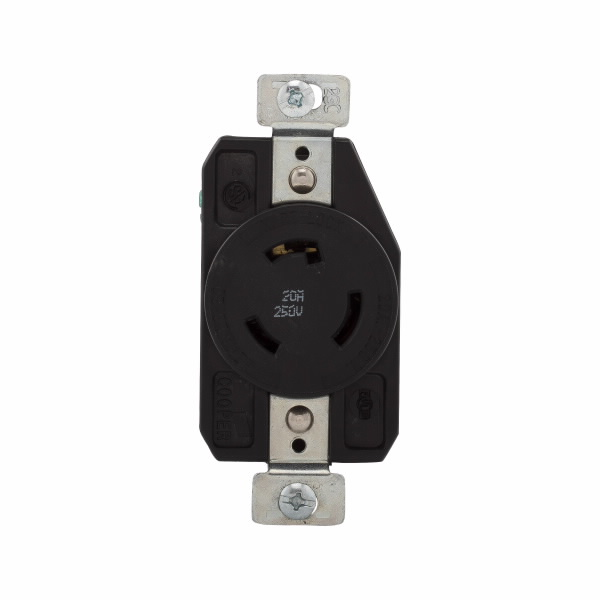

Eaton locking receptacle, Bulk pack, #14-8 AWG, 20A, Industrial, 250V, Back and side wiring, Black, Single, L6-20, Two-pole, Three-wire, Glass-filled nylon, -40° to 115°C
Industrial grade locking devices are designed for quick and easy installation and provide reliable performance in tough industrial environments.
| Allowable Wire Size |
#14-8 AWG |
| Amperage Rating |
20 A |
| Application |
Industrial |
| Color |
Black |
| Contact Material |
Brass |
| Design Type |
Single receptacle |
| Device Grade |
Extra heavy-duty industrial specification grade |
| Face/Body Material |
Glass filled Nylon |
| Material |
Glass filled nylon |
| Nema Configuration |
L6-20 |
| Number Of Poles |
Two-pole |
| Number Of Wires |
Grounding | 3 |
| Operating Temperature |
-40 to 60 °C (-40 to 140 °F) |
| Receptacle Type |
Single |
| Special Features |
Bulk pack |
| Torque rating |
20 lbf-inch |
| Type |
Locking receptacle |
| Voltage Rating |
250 V |
| Wiring Method |
Back and side |
| Length |
1.03 IN |
| Width |
1.62 IN |
| Height |
3.5 IN |
| Volume |
5.84 CI |
| Weight |
0.26 LB |
| Length |
1.03 IN |
| Width |
1.62 IN |
| Height |
3.5 IN |
| Weight |
0.26 LB |
