Product Overview

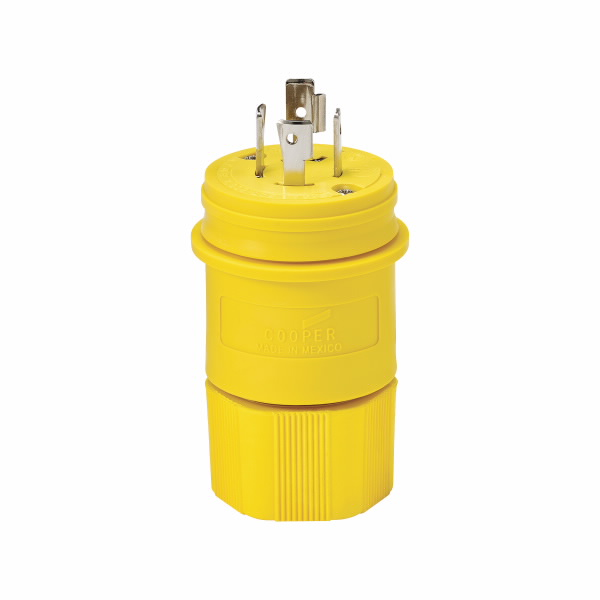

Eaton Wiring Devices L2030PW Plug WT 30A 347/600V 3PH 4P4W H/L YL
Eaton Arrow Hart watertight locking plug, #18-10 AWG, 30A, Industrial, 347/600V, Back wiring, Yellow, Steel, Watertight, L20-30, Four-pole, Four-wire, Santoprene, 0.43 to 1.15 in, IP67
Eaton's Arrow Hart watertight locking devices utilize a unique, robust design and superior materials to provide watertight security in harsh environments.
| Allowable Wire Size | #18-10 AWG |
| Amperage Rating | 30A |
| Application | Industrial |
| Color | Yellow |
| Contact Material | Nickel plated brass |
| Cord Diameter | 0.43-1.15 in |
| Degree of Protection | IP67 |
| Design Type | Watertight locking plug |
| Device Grade | Extra heavy-duty industrial specification grade |
| Environmental Resistance | IP67 | NEMA 6P | NEMA 6 | NEMA 4 | NEMA 4X |
| Face/Body Material | Nylon |
| Material | Santoprene |
| Nema Configuration | L20-30 |
| Number Of Poles | Four-pole |
| Number Of Wires | Non-grounding | 4 |
| Special Features | Watertight |
| Type | Locking plug |
| Voltage Rating | 3ØY 347/600 V |
| Wiring Method | Back |
| Length | 5.42 IN |
| Width | 2.49 IN |
| Height | 2.49 IN |
| Volume | 33.605 CI |
| Weight | 1.025 LB |
| Length | 5.42 IN |
| Width | 2.49 IN |
| Height | 2.49 IN |
| Weight | 1.025 LB |
Eaton Arrow Hart watertight locking plug, #18-10 AWG, 30A, Industrial, 347/600V, Back wiring, Yellow, Steel, Watertight, L20-30, Four-pole, Four-wire, Santoprene, 0.43 to 1.15 in, IP67
Eaton's Arrow Hart watertight locking devices utilize a unique, robust design and superior materials to provide watertight security in harsh environments.
