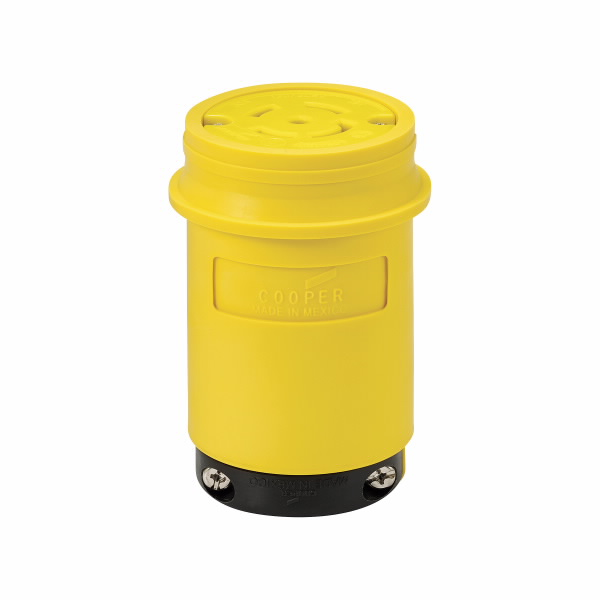

Eaton severe duty locking connector, #18-10 AWG, 30A, Industrial, 347/600V, Back wiring, Yellow, black, Severe duty, L23-30, Four-pole, Five-wire, Santoprene thermoplastic elastomeric, 0.63 to 1.16 in
Severe Duty locking and NEMA straight blade devices
| Allowable Wire Size |
#18-10 AWG |
| Amperage Rating |
30A |
| Application |
Industrial |
| Color |
Black | Yellow |
| Contact Material |
Nickel plated brass |
| Cord Diameter |
0.63-1.16 in (15.9-29.4 mm) |
| Design Type |
Safety grip |
| Device Grade |
Extra heavy-duty industrial specification grade |
| Environmental Conditions |
Corrosion resistant |
| Face/Body Material |
Nylon |
| Material |
Santoprene thermoplastic elastomeric |
| Nema Configuration |
L23-30 |
| Number Of Poles |
Four-pole |
| Number Of Wires |
5 | Grounding |
| Operating Temperature |
-40 to 75 °C (-40 to 167 °F) |
| Special Features |
Watertight locking connector |
| Torque rating |
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch |
| Type |
Locking connector |
| Voltage Rating |
3ØY 347/600 V |
| Wiring Method |
Back |
| Length |
6.75 IN |
| Width |
4.25 IN |
| Height |
3.75 IN |
| Volume |
107.578 CI |
| Weight |
0.66 LB |
| Length |
6.75 IN |
| Width |
4.25 IN |
| Height |
3.75 IN |
| Weight |
0.66 LB |
