Product Overview

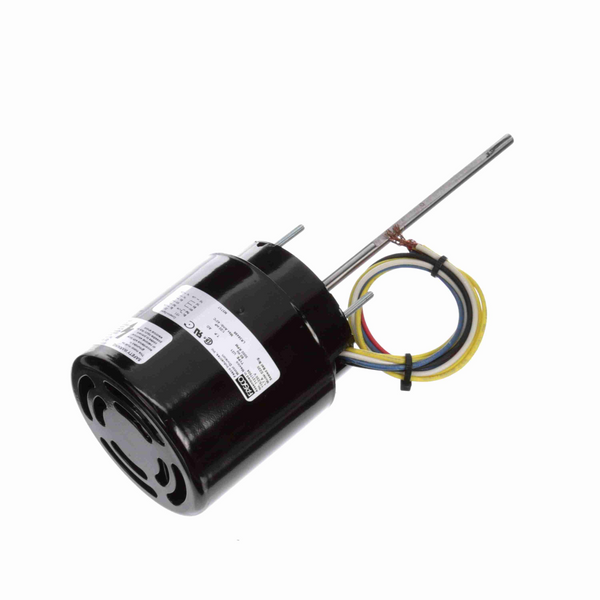

Fasco D220 Fan and Blower Motor 1/20 HP 1 Ph 60 Hz 115/230 V 3000 RPM 1 Speed
KEY FEATURES
- General Purpose Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Totally Enclosed Fan Cooled, Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 5/16" Diameter Shaft with Flat
- 12" Leads
- Extended Studs Shaft End
- Downloads:
- D220 Data Pack
General Specifications
| UPC: | 815585029083 | Weight: | 5.00 LB |
| Packaged Length: | 4.13 IN | Packaged Width: | 4.13 IN |
| Packaged Height: | 12.63 IN | Country of Origin: | Mexico |
Nameplate Specifications
| Output HP: | 1/20 Hp | Output KW: | 0.04 kW |
| Frequency: | 60 Hz | Voltage: | 115/230 V |
| Current: | 1.7 A | Speed: | 3000 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Efficiency: | 32 % | Duty: | Air Over |
| Insulation Class: | B | Frame: | 3.3 |
| Enclosure: | Totally Enclosed Fan Cooled | Thermal Protection: | Thermally Protected |
| Ambient Temperature: | 40 °C | UL: | Recognized |
| CSA: | Y | CE: | N |
| Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 2 | Rotation: | Clockwise Shaft End |
| Mounting: | Extended Studs | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Steel |
| Shaft Type: | Flat | Overall Length: | 11.25 in |
| Frame Length: | 3.43 in | Shaft Diameter: | 0.312 in |
| Shaft Extension: | 6.50 in |
