Product Overview

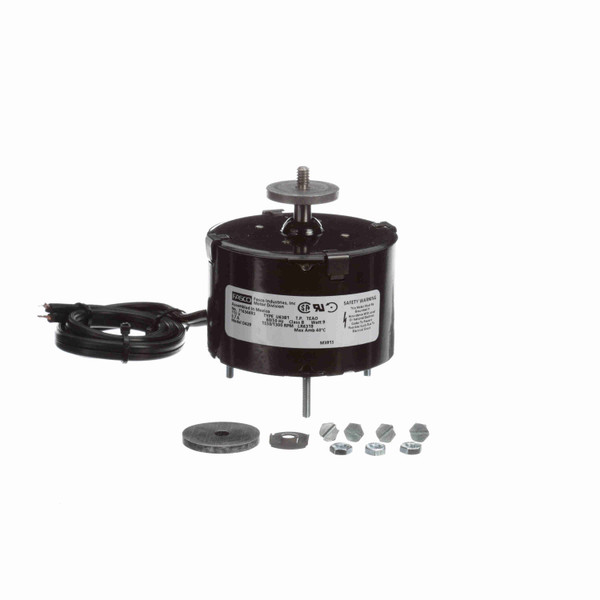

Fasco D429 9 WATT HP Refrigeration Motor, 1550/1300 RPM, 115 Volts, 3.3" Diameter, TEAO
- Refrigeration Fan Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter 1/4" x 20 Right-Hand Threaded Shaft
- 22" Leads
- Extended Studs Lead End, Mounting Bracket Lead End
General Specifications
| UPC: | 815585029953 | Weight: | 3 LB |
| Packaged Length: | 8 IN | Packaged Width: | 4.5 IN |
| Packaged Height: | 4.5 IN |
Nameplate Specifications
| Output Watts: | 9 W | Frequency: | 50 Hz |
| Voltage: | 115 V | Current: | 0.70 A |
| Speed: | 1550/1300 rpm | Service Factor: | 1 |
| Phase: | 1 | Duty: | Continuous Air Over |
| Insulation Class: | B | Frame: | 3.3 |
| Enclosure: | Totally Enclosed Air Over | Thermal Protection: | Thermally Protected |
| Ambient Temperature: | 40 °C | UL: | Recognized |
| CSA: | Y | CE: | N |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Counterclockwise Shaft End |
| Mounting: | Extended Studs | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Steel |
| Shaft Type: | Threaded | Frame Length: | 2.18 in |
| Shaft Diameter: | 0.313 in | Shaft Extension: | 1.2 in |
