Product Overview

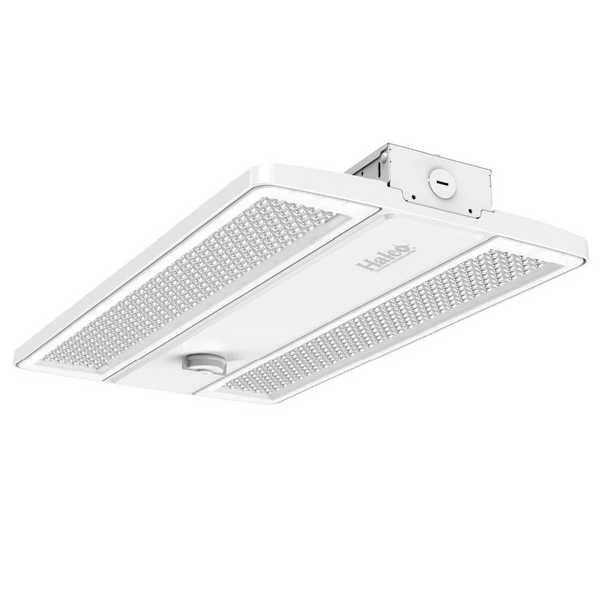

Halco 36163 LED Controls Ready Compact Linear Highbay-4 Lumen & Color Select 38,600-47,700LM (240W-280W-320W) 35-40-50K Adj Beam Angle (Narrow, Standard, Wide) Z10 Sensor Socket 120-277VAC with Suspended Chain Mount (Gen-2)
Product Description
The Compact Linear High Bay (CLHB) combines advanced functionality with a compact, installer-friendly design to deliver strong performance across a wide range of commercial and industrial applications. Its diecast aluminum housing provides excellent heat dissipation and long-term durability, while field-selectable lumen output, CCT, and beam angle give users the flexibility to optimize light levels and distribution directly on site. The fixture also includes a Zhaga Z-10 receptacle for plug-and-play control integration, enabling standalone or Bluetooth and other advanced lighting control solutions to support greater energy savings and system efficiency. With its blend of performance, adaptability, and modern control readiness, the CLHB offers a reliable and versatile lighting solution for warehouses, gymnasiums, retail spaces, and other large indoor environments.
Product Detail
- Manufacturer Halco Lighting Technologies
- Color Temp Selectable 3500K, 4000K or 5000K
- UPC 807154361632
- Brand Halco
- Technology LED
- Watts Selectable 240W, 280W or 320W
- Dimmable Yes (0-10V)
- Wattage Selectable Yes
- Color Selectable Yes
- Included Accessory Suspension Chain & V-hooks
- Applications Warehouses, Gymnasiums, Retail Spaces, Big Box Retail and other large indoor environments
- Voltage 120-277VAC
- Market Commercial, Industrial
Performance
- Lumens 38,600-43,300-47,700 LM
- Average Life 100000
- Color Rendering Index (CRI) 80
- Beam Angle 90x90,45x100, or 65x90 Deg
- Beam Type (Spread) Selectable Narrow, Standard, or Wide
- Warranty (years) 5
- Power Factor 0.9
- Min Operating Temp -40C (-40F)
- Max Operating Temp 55C (131F)
Packaging, Weights & Dimensions
- Sold in Multiples of 1
- Master Carton Size 1
- Weight per Item 10.8lbs
- Box Length 22.8
- Box Width 13.2
- Box Height 3.1
- Inner Package Size 1
Construction
- Mount Included Yes. Suspension Chain & V-Hooks
- Mount Options Suspension Chain and V-Hooks. Pendant Mount or U-Brackets sold separately for Ceiling mount.
- Finish White
- Lens Polycarbonate lens
- Housing Material Die-cast aluminum housing 1/2in Knock outs on top, sides and bottom
Controls
- Emergency Backup Available Yes
- Network Controls Available Yes TruBlu Gateways sold separately
- Integrated Controls Available Yes Build in Zhaga Z-10 receptacle for control solutions (Standalone & Bluetooth)
Certifications
- DLC Qualified DLC 6.0 Premium
- Environment (wet, damp,etc) Damp
- IP Rating IP20
- UL Listed Yes
- RoHs Yes
- Certifications DLC 6.0 Premium - UL listed - FCC - RoHS - IP20 - Damp Location
