| UPC: |
66238116566 |
| Number of Secondary Openings per Pole: |
12 |
| Secondary Opening Wire Size: |
14 to 4 AWG |
| Conductor Material: |
Copper/Aluminum |
| Cover Type: |
Clear Acrylic, CL |
| Size: |
5.5 Inch Length x 2.9 Inch Width x 3.25 Inch Height |
| Temperature Rating: |
90 Deg C |
| Connector Material: |
Aluminum Alloy |
| Housing Material: |
Glass Filled Polyester |
| Color: |
Black |
| Approval: |
UL 1059, CSA |
| Catalog Number: |
AL-P2-H12 |
| Additional Information: |
Short Circuit Current Rating 10000 Amp; Number of Terminals 14; Mounting Type 2-Hole; Application Terminate, Splice, Tap Power Connector |
| Brand Name: |
NSi |
| Model: |
AL |
| Type: |
Double Primary |
| Voltage Rating: |
600 Volt |
| Current Rating: |
620 Amp per Pole |
| Number of Primary Openings per Pole: |
2 |
| Primary Opening Wire Size: |
6 AWG to 350 KCMIL |
| CATALOG DESCRIPTION: |
POWER DISTRIBUTION BLOCK (2) 350 MCM-6 AWG PRIMARY (12) 4-14 AWG SECONDARY POWER DISTRIBUTION BLOCKS ARE MADE OF HIGH STRENGTH, HIGH-CONDUCTIVITY ALUMINUM ALLOY AND ARE MOUNTED IN A HIGH-STRENGTH GLASS-FILLED POLYESTER BASE. EACH BLOCK CAN STAND ALONE OR COMBINE WITH OTHER BLOCKS TO FORM A MULTI-BLOCK SET. |
| Category: |
Terminal Blocks & Accessories |
| Full Technical Description: |
Double Primary Type; 5.5 Inch Length X 2.9 Inch Width X 3.25 Inch Height Size; Black Color; Copper/Aluminum Conductor Material; UL 1059, CSA Approval; 600 Volt Voltage Rating; 620 Amp Per Pole Current Rating; Clear Acrylic, CL Cover Type; 90 Deg C Temperature Rating; Glass Filled Polyester Housing Material; Aluminum Alloy Connector Material; 14 to 4 AWG Secondary Opening Wire Size; 6 AWG to 350 kcmil Primary Opening Wire Size; 12 Secondary Openings Per Pole; 2 Primary Openings Per Pole; Connector BLOKS[TM] Brand; Short Circuit Current Rating 10000 Amp; Number of Terminals 14; Mounting Type 2-Hole; Application Terminate, Splice, Tap Power Connector; AL Model |
| Made in USA: |
Yes |
| Manufacturer: |
NSi Industries, LLC |
| Manufacturer Brand: |
NSi Industries, Inc. |
| Product Description: |

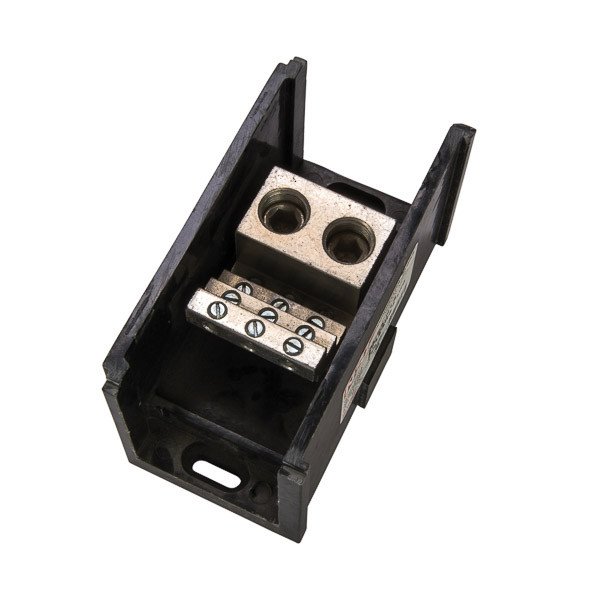

NSI AL-P2-H12 (2) 350 MCM - 6 Awg Primary (12) 4-14 Secondary, Power Distribution Block |
| Sub-Category: |
Power Distribution Block |
| UNSPSC: |
39121405 |
| UPC 12 Digit: |
662381165664 |
