| UPC: |
66238103513 |
| Pad Size: |
2.99 Inch Length x 1.09 Inch Width x 0.15 Inch Thickness |
| Number of Pad Holes: |
2 |
| Pad Hole Spacing: |
1.75 Inch |
| Stud Size: |
1/2 Inch |
| Color: |
Yellow |
| Die Index: |
11/16/62 |
| Material: |
Tin Plated Copper |
| Overall Length: |
4.96 Inch |
| Approval: |
UL 486A/B, 467, UL (Canada and US) |
| Additional Information: |
Inner Diameter 0.59 Inch; Outer Diameter 0.75 Inch; Temperature Rating 90 Deg C; Application Terminate, Splice, Tap Power Connectors |
| Catalog Number: |
L250N |
| Brand Name: |
NSi |
| Model: |
LN |
| Voltage Rating: |
600 Volt to 35 Kilovolt |
| Conductor Material: |
Copper |
| Conductor Size: |
250 KCMIL |
| Barrel Type: |
Long |
| Barrel Length: |
1.61 Inch |
| CATALOG DESCRIPTION: |

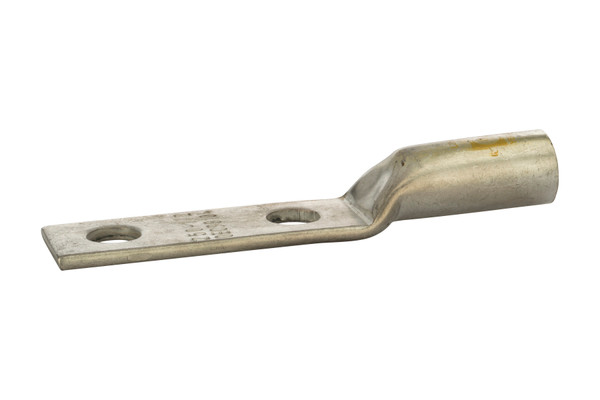

2HOLE LONG BARREL COPPER COMPRESSION LUG250 MCM-1/2" BOLT LONG BARREL COPPER COMPRESSION LUGS IS A TYPE OF COPPER COMPRESSION CONNECTOR THAT IS PRODUCED FROM HIGH CONDUCTIVITY COPPER TUBING. THEY ARE TIN-PLATED TO PROVIDE CORROSION RESISTANCE AND ARE MARKED WITH DIE INDEX AND COLOR CODED FOR EASY REFERENCE. LISTED FOR 35KV MAXIMUM WHEN PROPERLY INSTALLED. |
| Category: |
Large Terminals & Connectors |
| |
|
| Full Technical Description: |
Tin Plated Copper Material; Yellow Color; 4.96 Inch Overall Length; 1.61 Inch Barrel Length; Copper Conductor Material; UL 486A/B, 467, UL (Canada and Us) Approval; 600 Volt to 35 Kilovolt Voltage Rating; 250 kcmil Conductor Size; 1/2 Inch Stud Size; 11/16/62 Die Index; 2.99 Inch Length X 1.09 Inch Width X 0.15 Inch Thickness Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Long Barrel Type; Inner Diameter 0.59 Inch; Outer Diameter 0.75 Inch; Temperature Rating 90 Deg C; Application Terminate, Splice, Tap Power Connectors; LN Model |
| Manufacturer: |
NSi Industries, LLC |
| Manufacturer Brand: |
NSi Industries, Inc. |
| Product Description: |
NSI L250N 250 MCM COPPER COMPRESSION LUG, 1/2 BOLT SIZE, 2 HOLE |
| Sub-Category: |
Compression Cable Lug |
| UNSPSC: |
39121405 |
| UPC 12 Digit: |
662381035134 |
| Unique Product Key: |
5979700 |
| comm code enhanced: |
64120 |
