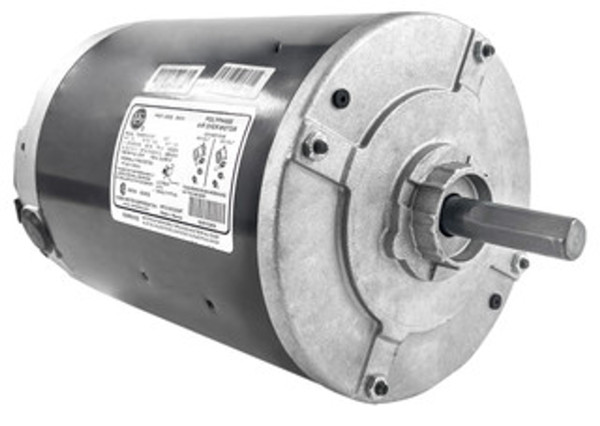

PEMS OKR1096N Nidec 56 Frame Condenser Fan Motor 1/2 HP Replaces OKR1096 OKR1096V1

Product Description

FEATURES  Auto Protector, Class B Moisture-Resistant Insulation, Double Sealed Ball Bearing, Permanent Split Capacitor, Positioning Lugs for easy Belly-Band Mounting, Quick-Connect Design, Reversible, Service Factor 1.0, 5/8" Dia. Shaft with both Keyway and Flat, 60 Degrees Celsius Ambient, 60 Hz, 1" (Minimum) Extended thru Bolts

• Nidec, Replaces Century OKR1096, OKR1096V1
• 1/2 HP
• 1140 RPM
• 208-230/460 Volts
• 2.0-1.9/1.1 Amps
• Totally Enclosed Air Over Enclosure
• 40 Degrees Celsius Ambient
• No Keyway, Double Flat

CROSS REFERENCES 150372, 11096, OKR1096, OKR1096V1
