Product Overview

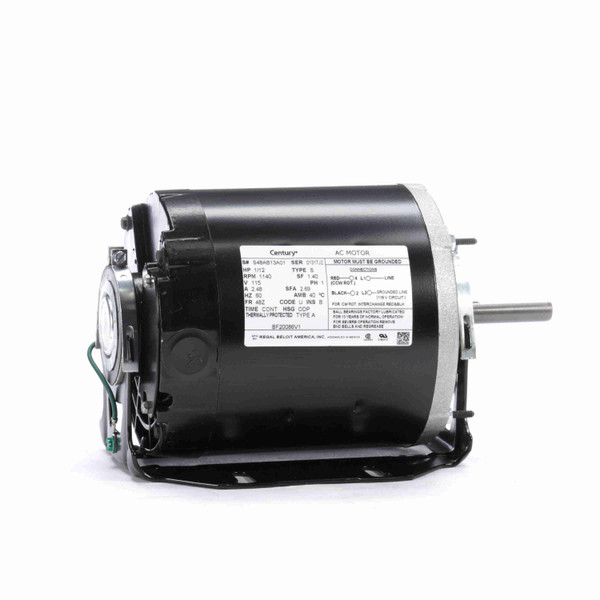

Century BF20086V1 Fan and Blower Motor 1/12 HP 1 Ph 60 Hz 115 V 1200 RPM 48Z Frame
KEY FEATURES
- Resilient Base
- Continuous duty
- Single and two speed
Nameplate Specifications
| Phase: | 1 | Output HP: | 1/12 Hp |
| Output KW: | 0.06 kW | Voltage: | 115 V |
| Speed: | 1140 rpm | Service Factor: | 1.4 |
| Frame: | 48Z | Enclosure: | Open Drip Proof |
| Thermal Protection: | Automatic | Ambient Temperature: | 40 °C |
| Frequency: | 60 Hz | Current: | 2.48 A |
| Duty: | Continuous | Insulation Class: | B |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Split Phase | Starting Method: | Across The Line |
| Poles: | 6 | Rotation: | Reversible |
| Mounting: | Resilient Base | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | Flat | Overall Length: | 9.53 in |
| Frame Length: | 5.94 in | Shaft Diameter: | 0.500 in |
| Shaft Extension: | 2 in |
General Specifications
| UPC: | 786674013729 | Weight: | 17.00 LB |
| Packaged Length: | 13 IN | Packaged Width: | 7 IN |
| Packaged Height: | 10 IN | HTC: | 8501.40.4040 |
| Country of Origin: | Mexico |
